[06-1-G] Animation : Transformation series (3/3)

It is the transformation animations that are performed by some method or function.



Class	Parameters	Explanation
ApplyMethod	mobject,  *args, **kwargs	Animation effect where a method of mobject is performed. The *args is the parameter for method, and *8kwargs is CONFIG parameter dictionary for the ApplyMethod.
ApplyPointwiseFunction	function, mobject, **kwargs	Animate the transformation by applying a function to the object. Where function is the operation for each point of mobject.
ApplyFunction	function, mobject, **kwargs	Animate the transformation by applying a function to the object. function must return an Mobject object
Homotopy	homotopy, mobject, **kwargs	Animation applying homotopy function to mobject. The homotopy function is (x,y,z,t) -> (x', y', z)
PhaseFlow	function, mobject, **kwargs	Animation that applies a function that is a function of time t to mobject



---

ApplyMethod class

object > Animation > Transform > ApplyMethod

manimlib.animation.transform.ApplyMethod(self, method, *args, **kwargs)

Animation effect where a method of mobject is performed.
The *args is the parameter for method, and **kwargs is CONFIG parameter dictionary for the ApplyMethod.



self.play(ApplyMethod(text.scale, 1.5))  # animation that enlarge the text

Parameters: method
    Method of the mobject.

Parameters: *args
    Parameters for the method

Parameters: **kwargs
    CONFIG values of Transform/Animation

    Frequently used variables are,
    - run_time=1.0: Animation running time
    - rate_func=smooth: Velocity change function when the animation is running



Mobject has several methods to change the position/property of the object, a method to change the position such as to_edge and a method to change the color such as set_color.

The class that animates the execution of this method is ApplyMethod.

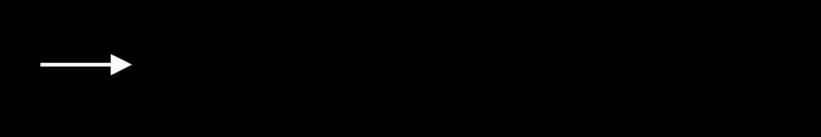

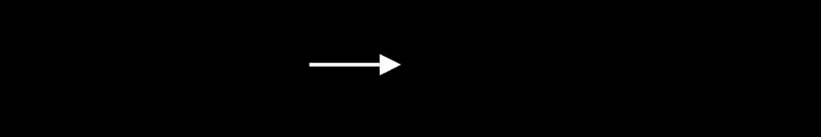

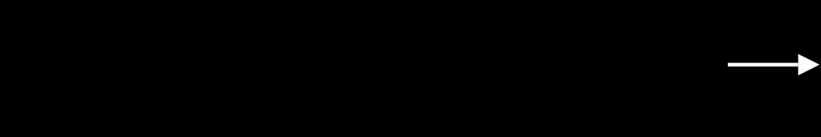

The example below animates sending the left arrow to the right with the to_edge(RIGHT) method.



        arrow = Arrow().to_edge(LEFT)

        self.add(arrow)
        self.play(ApplyMethod(arrow.to_edge, RIGHT))
        self.wait()



---

ApplyPointwiseFunction class

object > Animation > Transform > ApplyMethod > ApplyPointwiseFunction

manimlib.animation.transform.ApplyPointwiseFunction(self, function, mobject, **kwargs)

Animate the transformation by applying a function to the object. Where function is the operation for each point of mobject.



    CONFIG = {
        "run_time": DEFAULT_POINTWISE_FUNCTION_RUN_TIME
    }

Parameters: function
    Function for the each point of the mobject

Parameters: mobject
    Mobject instance to be target

Parameters: **kwargs
   CONFIG value of ApplyPointwiseFunction and Transform/Animation

    Frequently used variables are,
    - run_time=1.0: Animation running time
    - rate_func=smooth: Velocity change function when the animation is running

This animation is used to change each point of the object through a function and to animate this function execution.



For example, you can create an animation where a small circle is in the center of the screen and each point in the circle gets larger and wider.



    def apply_pointwise_function(self):
        circle = Circle(radius=0.5)
        circle.save_state()

        self.add(circle)
        self.wait()

        self.play(
            ApplyPointwiseFunction(
                lambda p: 10 * p / get_norm(p),
                circle
            )
        )
        self.play(Restore(circle))

        circle.set_fill(color=RED, opacity=0.5)
        self.play(
            ApplyPointwiseFunction(
                lambda p: 10 * p / get_norm(p),
                circle
            )
        )

        self.wait(2)



---

ApplyFunction class

object > Animation > Transform > ApplyFunction

manimlib.animation.transform.ApplyFunction(self, function, mobject, **kwargs)

Animate the transformation by applying a function to the object. function must return an Mobject object



The difference is that ApplyMethod animates the execution of the methods that Mobject has, whereas ApplyFunction animates a newly created function.

In other words, ApplyMethod applies to the existing method, and ApplyFunction applies the newly created function rather than the existing method.

Parameters: function
    Function of Mobject

Parameters: mobject
    Object to be target

Parameters: **kwargs
    CONFIG values of Transform/Animation

    Frequently used variables are,
    - run_time=1.0: Animation running time
    - rate_func=smooth: Velocity change function when the animation is running

Instead of the methods inherent in the Mobject object, we can apply our new function to the object.



The new function must return the changed object after moving the object, changing the color, etc.



The example below is an animation that fades out a circle and slowly descends.



    def apply_function(self):
        circle = Circle(fill_opacity=1, color=RED).shift(DOWN)
        circle.save_state()

        self.add(circle)
        self.wait()

        self.play(
            ApplyFunction(
                lambda m : m.fade(1).shift(5*DOWN),
                circle,
                run_time=6,
            )
        )

        self.wait(2)



---

Homotopy class

object > Animation > Homotopy

manimlib.animation.movement.Homotopy(self, homotopy, mobject, **kwargs)

Animation applying homotopy function to mobject.
The homotopy function is (x,y,z,t) -> (x', y', z)



    CONFIG = {
        "run_time": 3,
        "apply_function_kwargs": {},
    }



Parameters: homotopy
    Homotopy function: continuous transforming function
    This function change (x, y, z, t) to (x', y', z')

Parameters: mobject
    Mobject instance to be target

Parameters: **kwargs
    CONFIG values of Homotopy and Animation

    Frequently used variables are,
    - run_time=1.0: Animation running time
    - rate_func=smooth: Velocity change function when the animation is running


This animation is mainly used for animations that make objects swing up and down or left and right. To make it sway left and right, you can change the x-axis value according to t as shown in the code below.



        def homotopy_x(x, y, z, t):
            alpha = (0.7*x + FRAME_Y_RADIUS)/(FRAME_HEIGHT)
            beta = squish_rate_func(smooth, alpha-0.15, alpha+0.15)(t)
            return (x - 0.3*np.sin(np.pi*beta), y, z)



To make it sway left and rigth, you can change the x-vaxis value according to t as shown in the code below.

        def homotopy_x(x, y, z, t):
            alpha = (0.7*x + FRAME_Y_RADIUS)/(FRAME_HEIGHT)
            beta = squish_rate_func(smooth, alpha-0.15, alpha+0.15)(t)
            return (x - 0.3*np.sin(np.pi*beta), y, z)





To make it sway up and down, you can apply a function whose y value change with t.

        def homotopy_y(x, y, z, t):
            alpha = (0.7*x + FRAME_X_RADIUS)/(FRAME_WIDTH)
            beta = squish_rate_func(smooth, alpha-0.15, alpha+0.15)(t)
            return (x, y - 0.3*np.sin(np.pi*beta), z)



In the example below, the above functions are applied to create a sloopy effect on the objects.

    def homotopy(self):
        def homotopy_x(x, y, z, t):
            alpha = (0.7*x + FRAME_Y_RADIUS)/(FRAME_HEIGHT)
            beta = squish_rate_func(smooth, alpha-0.15, alpha+0.15)(t)
            return (x - 0.3*np.sin(np.pi*beta), y, z)

        def homotopy_y(x, y, z, t):
            alpha = (0.7*x + FRAME_X_RADIUS)/(FRAME_WIDTH)
            beta = squish_rate_func(smooth, alpha-0.15, alpha+0.15)(t)
            return (x, y - 0.3*np.sin(np.pi*beta), z)

        text = TextMobject("Homotopy Animation")
        circle = Circle()
        square = Square()
        objs = VGroup(text, circle, square).arrange(RIGHT, buff=1)

        self.add(objs)
        self.wait()

        for i in range(0, 2):
            self.play(Homotopy(homotopy_x, objs))

        for i in range(0, 2):
            self.play(Homotopy(homotopy_y, objs))
        self.wait()

---

PhaseFlow class

object > Animation > PhaseFlow

manimlib.animation.movement.PhaseFlow(self, function, mobject, **kwargs)

Animation that applies a function that is a function of time t to mobject



    CONFIG = {
        "virtual_time": 1,
        "rate_func": linear,
        "suspend_mobject_updating": False,
    }

Parameters: function
    Function varying according to the time

Parameters: mobject
    Mobject instance to be target

Parameters: **kwargs
    CONFIG values of PhaseFlow and Animation

    Frequently used variables are,
    - run_time=1.0: Animation running time
    - rate_func=smooth: Velocity change function when the animation is running




The example below is an naimation that spreads the NumberPlane and the objects contained in it wide from side side over time.



    def phase_flow(self):
        name_text = Text("PhaseFlow", stroke_width=0, size=0.4, color=YELLOW)
        name_text.to_corner(UL)

        plane = NumberPlane(color=BLUE_E)
        square = Circle(color=YELLOW)
        plane.add(square)

        self.add(plane, name_text)
        self.wait()

        def func(t):
            return t * 0.1 * RIGHT

        self.play(PhaseFlow(
            func, plane,
            run_time=5,
            virtual_time=8,
        ))



---
