[06-1-D] Animation : Move/Rotating series

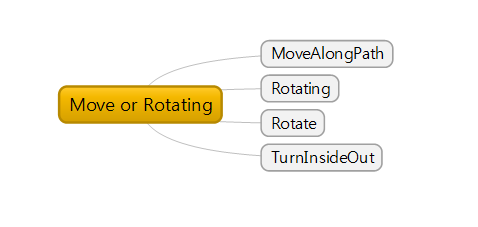

Animation that moves and rotates objects.



Class	Parameters	Explanation
MoveAlongPath	mobject, path	Move mobject along the path
Rotate	mobject, angle=PI, asis=OUT	Rotate mobject by angle about axis
Rotating	mobject	Rotate mobject by radians about the axis
TurnInsideOut	mobject	Flip mobject back and forth by path_arc=TAU/4



Animation classes related to move/rotating have different parameters used for each class, so each class will be explained.



---

MoveAlongPath class

object > Animation > MoveAlongPath

manimlib.animation.movement.MoveAlongPath(self, mobject, path, **kwargs)

Move mobject along the path

path =  ArcBetweenPoints(LEFT*4+UP*2, RIGHT*4 + DOWN*2, angle=PI/2, stroke_width=8)
circle = Circle()
self.play(MoveAlongPath(circle, path), run_time=3)



    CONFIG = {
        "suspend_mobject_updating": False,
    }

Parameters: mobject
    Target object to be animated

Parameters: path
    The object move along the path



---

Rotate class

object > Animation > Transform > Rotate

manimlib.animation.rotation.Rotateself, mobject, angle=PI, axis=OUT, **kwargs)

Rotate mobject by angle about axis.

'axis=OUT' is the default and OUT means the z-axis, so it rotates counterclockwise when the object is viewed from above.

When 'axis=LEFT/RIGHT', the object is rotated forward/backward.



self.play(Rotate(square, angle=PI/4), run_time=3)  # 45 degrees, counterclockwise
self.play(Rotate(square, angle=380 * DEGREES, axis=RIGHT), run_time=3) # 380 degrees, backward



    CONFIG = {
        "about_point": None,
        "about_edge": None,
    }

Parameters: mobject
    Target object to be animated

Parameters: angle=PI
    The angle to rotate. unit is radians

Parameters: axis=OUT
    Central axis of rotation.
    If axis=OUT, it's z-axis: so the mobject rotates counterclockwise
                              when viewed from the front of the screen.
    If axis=RIGHT, totates to the back of the screeen.

Parameters:  **kwargs
    CONFIG values of Rotate and Transform/Animation



---

Rotating class

object > Animation > Rotating

manimlib.animation.rotation.Rotating( mobject, **kwargs)

    CONFIG = {
        "axis": OUT,
        "radians": TAU,
        "run_time": 5,
        "rate_func": linear,
        "about_point": None,
        "about_edge": None,
    }

Rotate mobject by radians about the axis.


'axis=OUT' is the default and OUT means the z-axis, so it rotates counterclockwise when the object is viewed from above.

When 'axis=LEFT/RIGHT', the object is rotated forward/backward.



The Rotate and Rotating classes have similar uses.

The difference was that Rotating was implemented by inheriting Animation directly, and Rotate was created by inheriting Animation> Transform.

Therefore, if you are doing an animation that continuously rotates the circle in 1 degree increments, it is better to use Rotating than Rotate.
If you use Rotate class for this animation, the shape of circle may be distorted because Rotate class try to transform it from the previous object to new object simultaneously.

self.play(Rotating(square, radians=PI/4), run_time=3)  #45 degrees, counterclockwise
self.play(Rotating(square, radians=380 * DEGREES, axis=RIGHT), run_time=3) #380 degrees, backward

Parameters: mobject
    Target object to be animated

Parameters:  **kwargs
    CONFIG values of Rotate and Transform/Animation

    Frequently used variables are,
    - axis=OUT: Central axis of rotation.
                If axis=OUT, it's z-axis: so the mobject rotates counterclockwise
                when viewed from the front of the screen.

    - radians=TAU: Angle to rotage. unit is radians




---

TrunInsideOut class

object > Animation > Transform > TurnInsideOut

manimlib.animation.indication.TurnInsideOut( mobject, **kwargs)

    CONFIG = {
        "path_arc": TAU / 4,
    }

It has the effect of inverting mobject in front and back.

self.play(TurnInsideOut(square ), run_time=3)



Parameters: mobject
    The target object to be animated

Parameters:  **kwargs
    CONFIG values of TurnInsideOut and Transform/Animation

---

Below is the code to test the move/rotation animation classes.



class MovingRotating(Scene):
    def construct(self):
        ani_classes = {
            "MoveAlongPath": (MoveAlongPath,),
            "Rotate": (Rotate,),
            "Rotating": (Rotating,),
            "TurnInsideOut": (TurnInsideOut,),
        }

        idx = 1
        for name, ani in ani_classes.items():
            if name == "MoveAlongPath" :
                self.move_along_path(idx, name)
            elif name == "Rotate":
                self.rotate(idx, name)
            elif name == "Rotating":
                self.rotate(idx, name)
            elif name == "TurnInsideOut":
                self.turn_inside_out(idx, name)
            self.wait()

            idx += 1

    def move_along_path(self,idx,ani_name):
        name_text = Text(str(idx) + ". " + ani_name, stroke_width=0, size=0.4, color=YELLOW)
        name_text.to_corner(UL)

        arc = ArcBetweenPoints(LEFT*4+UP*2, RIGHT*4 + DOWN*2, angle=PI/2, stroke_width=8)
        circle = Circle(color=YELLOW, fill_color=YELLOW, fill_opacity=0.6)
        circle.move_to(arc.get_start())

        self.add(name_text)
        self.add(arc, circle)
        self.wait()

        self.play(MoveAlongPath(circle,arc), run_time=3)

        self.remove(name_text, arc, circle)

    def rotate(self, idx, ani_name):
        name_text = Text(str(idx) + ". " + ani_name, stroke_width=0, size=0.4, color=YELLOW)
        name_text.to_corner(UL)

        square = Square()

        self.add(name_text,square)
        self.wait()

        self.play(Rotate(square, angle=PI/4), run_time=3)
        self.play(Rotate(square, angle=380 * DEGREES, axis=RIGHT), run_time=3)

        self.wait()
        self.remove(name_text,square)

    def rotating(self, idx, ani_name):
        name_text = Text(str(idx) + ". " + ani_name, stroke_width=0, size=0.4, color=YELLOW)
        name_text.to_corner(UL)

        square = Square()

        self.add(name_text,square)
        self.wait()

        self.play(Rotating(square, radians=PI/4), run_time=3)
        self.play(Rotating(square, radians=380 * DEGREES, axis=RIGHT), run_time=3)

        self.wait()
        self.remove(name_text, square)

    def turn_inside_out(self, idx, ani_name):
        name_text = Text(str(idx) + ". " + ani_name, stroke_width=0, size=0.4, color=YELLOW)
        name_text.to_corner(UL)

        square = Square()

        self.add(name_text, square)
        self.wait()

        self.play(TurnInsideOut(square ), run_time=3)

        self.wait()



---
