[06-1-C] Animation : Indicating series

The Indicating series animation class is an animation that draws attention to an object displayed on the screen while blinking it.

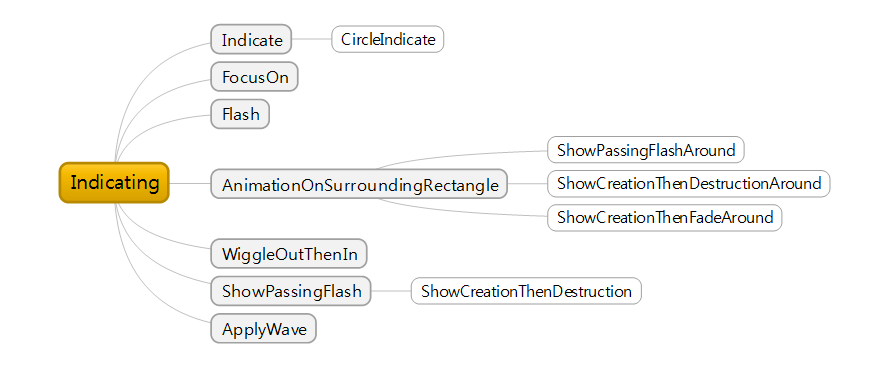

Indicating related classes are as follows.

Animation classes related Indicating effect

Class	Parameters	Explanation
ShowCreationThenDestruction	mobject	Draw an object for a short time and then make it disappear
Indicate	mobject	Make the object blink by the scale of the scale_factor and return it to the original size
WiggleOutThenIn	mobject	The effect of shaking slightly from side to side while slightly expanding. Scale how large it is to scale_value=1.1. rotation_angle=0.01*TAU adjusts the shaking angle
ApplyWave	mobject	Makes objects sway like waves. direction=UP to determine the direction of the wave. In the case of UP, the wave goes upward and then returns to its original position. Determine the digging with amplitude=0.2
CircleIndicate	mobject	Draw and erase the circle surrounding the object. The CONFIG value of the circle can be adjusted with circle_config. Since the object itself is not drawn, the object must be added on the screen in advance
FocusOn	mobject	The large flash-shaped light quickly diminishes and converges toward the object. Specify the color of the fire light with color=GREY. Specify the transparency of the fire light with opacity=0.2. It does not draw itself, but only emphasizes existing objects
Flash	Parameters	Draw and erase a small fire flower-shaped flash in the center of the object. Specify the length of the fire flower segment with line_length=0.2. num_lines=12 specifies the number of segments that make up the fire flower. Specify the radius of the fire flower with flash_radius=0.3, and the line thickness with line_stroke_width=3. It does not draw the center object itself, but only emphasizes the existing object.
ShowPassingFlashAround	mobject	Animation of small segments rapidly rotating around the object's surrounding rectangle. It does not draw the object itself, but only emphasizes the existing object.
ShowCreationThenDestructionAround	mobject	Draw a rectangle around the object as if you were drawing with a pen, and after drawing the shape of the rectangle, remove the rectangle as if you were erasing it in the direction you drew. It does not draw the object itself, but only emphasizes the existing object.
ShowCreationThenFadeAround	mobject	Draw a rectangle around the object as you would with a pen, and after drawing the rectangle, make the rectangle disappear gradually. It does not draw the object itself, but only emphasizes the existing object.
ShowPassingFlash	mobject	The effect that a small light sweeps through the object's outline once. It does not draw the object itself, but only emphasizes the existing object.
AnimationOnSurroundingRectangle	mobject	Draw a rectangle around the object, and the drawn rectangle does not disappear. It does not draw the object itself, but only emphasizes the existing object.

Animations related to 'indicating' have CONFIG values that determine the size of the indicating. For the Indicate class, you can specify the size to be emphasized, such as scale_factor=1.2.

Below is the code that shows the operation of Indicating series classes in sequence.

Unlike the sample code in the previous Creationg series animation, we added a Dot, changed the Line to an Arrow, and made it animate for each individual object, not for the entire VGroup object.

That's because we can see what happens when each object is animated: text, circles, points, and arrows.

Text class does not work for ApplyWave. So, I used TextMobject.

class IndicatingTest(Scene):
    def construct(self):
        self.indicating()

    def indicating(self):
        ani_classes = {
            "ShowCreationThenDestruction": (ShowCreationThenDestruction,),
            "Indicate": (Indicate, ),
            "WiggleOutThenIn": (WiggleOutThenIn,),
            "ApplyWave": (ApplyWave, ),
        }

        ani_classes_need_pre_exist={
            "CircleIndicate": (CircleIndicate,),
            "FocusOn": (FocusOn,),
            "Flash": (Flash,),
            "ShowPassingFlashAround": (ShowPassingFlashAround,),
            "ShowCreationThenDestructionAround": (ShowCreationThenDestructionAround,),
            "ShowCreationThenFadeAround": (ShowCreationThenFadeAround,),
            "ShowPassingFlash": (ShowPassingFlash,),
            "AnimationOnSurroundingRectangle": (AnimationOnSurroundingRectangle,),
        }

        idx = 1
        for name, ani in ani_classes.items():
            self.do_ani(idx, name, ani)
            idx += 1

        #need to existing mobject prior to play animation
        for name, ani in ani_classes_need_pre_exist.items():
            self.do_ani(idx, name, ani, need_prior=True)
            idx += 1

    def do_ani(self, idx, ani_name, ani, obj=None, need_prior=False):
        def get_obj():
            text = TextMobject("Hello. This is animation test")
            circle1 = Circle(radius=1)
            circle2 = Circle(radius=1, fill_color=YELLOW, fill_opacity=1)
            circles = VGroup(circle1, circle2)

            dot = Dot()
            arrow = Arrow(LEFT, RIGHT, stroke_width=5).set_width(3)
            dot.next_to(arrow, LEFT, buff=0.5)
            dot_arrow = VGroup(dot, arrow)

            text.next_to(circles, UP)
            circles = VGroup(circle1, circle2)
            circles.arrange(RIGHT)
            dot_arrow.next_to(circles, DOWN)

            return VGroup(text, circle1, circle2, dot, arrow)

        if obj is None:
            mobs = get_obj()
        else:
            mobs = obj

        if need_prior:
            self.add(mobs)

        name_text = Text(str(idx) + ". " + ani_name, stroke_width=0, size=0.4, color=YELLOW)
        name_text.to_corner(UL)

        self.add(name_text)
        self.wait()

        for mob in mobs:
            if len(ani) == 1:
                self.play(ani[0](mob), run_time=1)
            elif len(ani) == 2:
                self.play(ani[0](mob, ani[1]), run_time=1)
            elif len(ani) == 3:
                self.play(ani[0](mob, ani[1], ani[2]), run_time=1)
            else:
                self.play(ani[0](mob, ani[1:]), run_time=1)

        self.wait()
        self.remove(name_text, mobs)

Animation classes for Indicating

---
