[05-5-C] Graph Coordinate: Axes

NumberLine can be used to represent one axis.



Two-dimensional coordinate systems require two axes, and the Axes class is used to represent the x-axis and y-axis required for a two-dimensional coordinate system.

---

Axes class

object > Container > Mobject > VMobject > VGroup > Axes

manimlib.mobject.coordinate_system.Axes(self, **kwargs)

Create a 2D axis consisting of x-axis and y-axis.



The Axes class inherits the VGroup and Coordinate classes (Multiple Inheritance), and the Coordinate class is a kind of abstract class, and defines only the methods required for the coordinate system.

CONFIG = {
        "number_line_config": {
            "color": LIGHT_GREY,
            "include_tip": True,
            "exclude_zero_from_default_numbers": True,
        },
        "x_axis_config": {},
        "y_axis_config": {
            "label_direction": LEFT,
        },
        "center_point": ORIGIN,
    }



Parameters: **kwargs
    CONFIG values of Axes, Coordinate, and VMobject/Mobject

    Frequently used variables are,
    - number_line_config :
        - color=LIGHT_GREY: Line color
        - include_tip=True: Axis has tip(arrow) or not.
                            If true, for x-axis the tip is at the right end,
                            for y-axis the tip is at the top end.

        - exclude_zero_from_default_numbers=True: Whether to display zero.
                                                  Default is not dispplay it.

    - x_axis_config :  CONFIG values for x-axis NumberLine

    - y_axis_config :  CONFIG values for y-axis NumberLine
        - label_direction=LEFT: Position of y-axis label.
                                The default is the left side of y-axis.

    - center_point=ORIGIN: Where the x-axis and y-axis meet

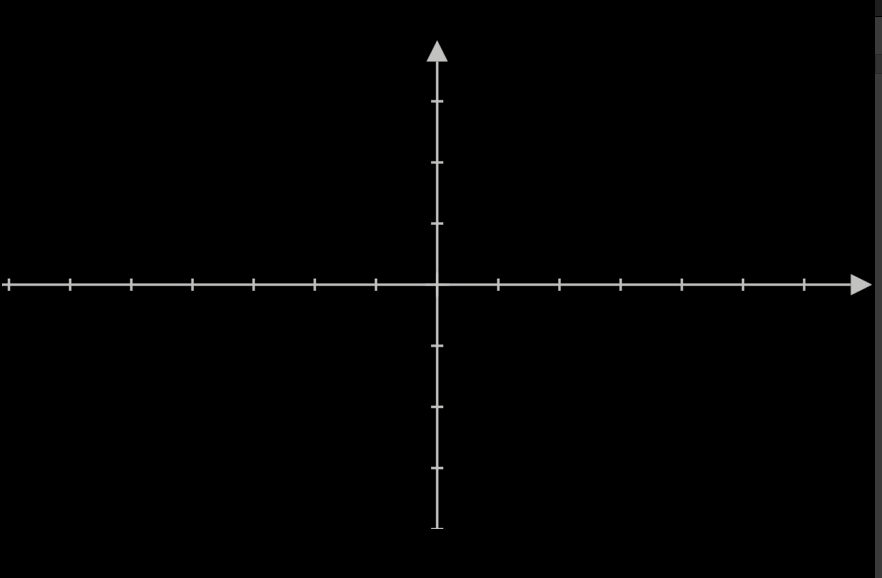

If you create Axes with default values, a coordinate system is created that covers the entire screen up to [-7.1, 7.1] on the x-axis and [-4, 4] on the y-axis.



axes = Axes()



---

The Axes class creates an xy coordinate system with an x-axis and y-axis of NumberLines.



The xy coordinate system controls the position of all points consisting of a combination of x values between [x_min, x_max] on the x-axis and [y_min, y_max] on the y-axis, (x,y) values Given this, it has a coords_to_point method that tells what position it is on the screen, and a point_to_coords method that finds the (x,y) coordinates for a position value on the screen.





coords_to_point method

manimlib.mobject.coordinate_system.Axes.coords_to_point(self, *coords)

Convert (x, y) value to a position of the screen.
Can be called with c2p as a short form



Parameters: *coords
    x, y value. If only one value is entered, it is treated as (x,0)

Returns:
    Position value on the screen corresponding to (x,y) coordinates. numpy array type

---

point_to_coords method

manimlib.mobject.coordinate_system.Axes.point_to_coords(self, point)

Convert a point value on the screen to (x, y) value.



It can be called p2c because of its short form.



Parameters: point
    position value on the screen

Returns:
    (x,y) value.





---

Let's create a coordinate system using Axes and draw a line connecting two specific points in this coordinate system.



The x-axis is from -10 to 10, and the y-axis is from -100 to 100, so we will make Axes with a large number that cannot be expressed using Manim's default screen coordinate system.



The CONFIG values involved are x_min, x_max, y_min, y_max.



            x_min=-10, x_max=10,
            y_min=-100, y_max=100,



For common value in the x- and y-axes, you can specify a value in number_line_config. Here, we will set the scale of the grid line to a smaller size of 0.05 in common with the x- and y-axis.

            number_line_config={
                "tick_size": 0.05,
            }



Items that are applied separately for the x-axis and y-axis are,

• The x-axis is between -10 and 10, so the entire range is 20, so it is scaled by '1/2' (unit_size=0.5).
• The y-axis has a range of 200, so we will use a scale of '6/200' (unit_size=6/200)
• Let's set the unit scale for the x-axis to 2, for the y-axis to 50,
• Specify the numbers to display directly with numbers_to_show value.

When assigning a value to numbers_to_show, since the x-axis and the y-axis intersect at 0, displaying a value of 0 here is bad for the view, so a value other than 0 was assigned to numbers_to_show.



            x_axis_config={
                "unit_size": 0.5,
                "tick_frequency": 2,
                "include_numbers": True,
                "numbers_to_show": np.append(np.arange(-10,0,2),np.arange(2,10,2)),
            },
            y_axis_config={
                "unit_size": 6/200,
                "tick_frequency": 50,
                "include_numbers": True,
                "numbers_to_show": [-100,-50,50,100],
                "label_direction": UP,
            },

Now that you're done setting the Axes values, I'm going to draw a line from the bottom left to the top right in this Axes coordinate system.



The two points are lower left (-8, -50) and the upper right (4, 50).



The method to convert the value of (x,y) to the point position on the screen is c2p method, which is an abbreviation of coords_to_point.



        line = Line (axes.c2p(-8,-50), axes.c2p(4,50))



The full code is,

class AxesTest(Scene):
    def construct(self):
        self.c2p_test()

    def c2p_test(self):
        axes = Axes(
            x_min=-10, x_max=10,
            y_min=-100, y_max=100,

            number_line_config={
                "tick_size": 0.05,
            },

            x_axis_config={
                "unit_size": 0.5,
                "tick_frequency": 2,
                "include_numbers": True,
                "numbers_to_show": np.append(np.arange(-10,0,2),np.arange(2,10,2)),
            },
            y_axis_config={
                "unit_size": 6/200,
                "tick_frequency": 50,
                "include_numbers": True,
                "numbers_to_show": [-100,-50,50,100],
                "label_direction": UP,
            },
        )

        self.add(axes)
        self.wait()

        line = Line (axes.c2p(-8,-50), axes.c2p(4,50))
        self.play(ShowCreation(line))

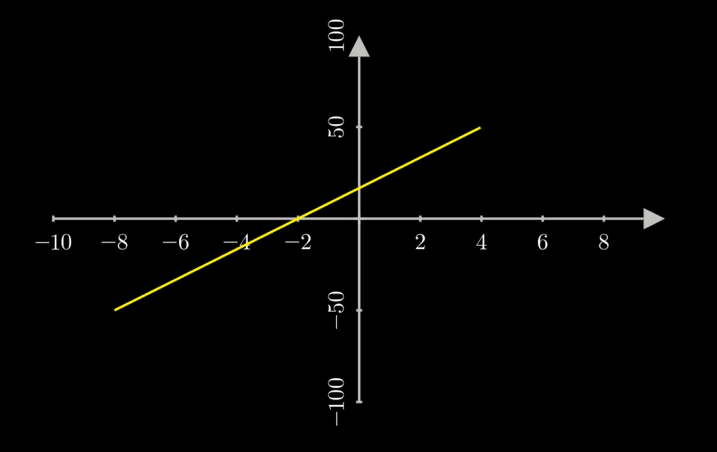

Captured image

---

An easy way to draw a graph in the Axes coordinate system is to use get_graph.

Just pass a mathematical function expression as an argument to get_graph.



In this case, the x,y range can be used in the Axes coordinate system.

Below is an example using get_graph.



• Create Axes composed of x-axis and y-axis,
• After moving the axes a little to the left of the center,
• Generate graphd using get_graph method.

    def get_graph_test(self):
        axes = Axes(
            x_min=0, x_max=8,
            y_min=-PI / 2, y_max=PI / 2,

            graph_style= {
               "stroke_color": GREEN,
               "stroke_width": 3,
               "fill_opacity": 0,
            },

            number_line_config={
                "color": "#EEEEEE",
                "stroke_width": 2,
                "include_tip": False,
            },

            y_axis_config={
                "tick_frequency": PI / 8,
                "unit_size": 1.5,
            },
        )

        axes.center().shift(LEFT)

        L = 2.0
        g = 20
        theta0 = 20 * DEGREES
        graph = axes.get_graph(
            lambda t: theta0 * np.cos(t * np.sqrt(g / L)),
            color=YELLOW,
        )

        self.add(axes,graph)
        self.wait()

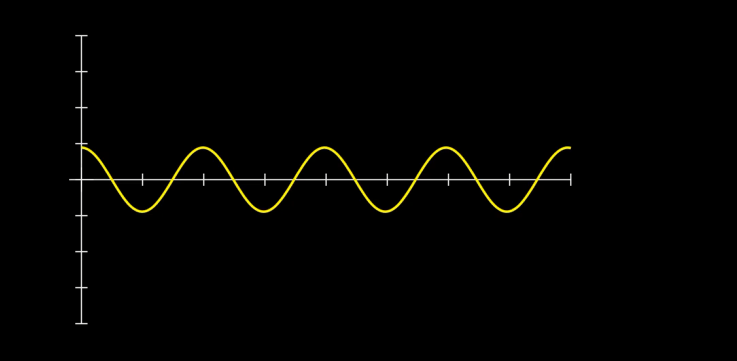

Captured image from the video

---

In the next page, we will learn about NumberPlane, which inherits these Axes and draws a grid based on the basic units of the x-axis and y-axis.



Next: [05-5-D] Grid Background: NumberPlane
