[020]Vector/TangentLine

반응형

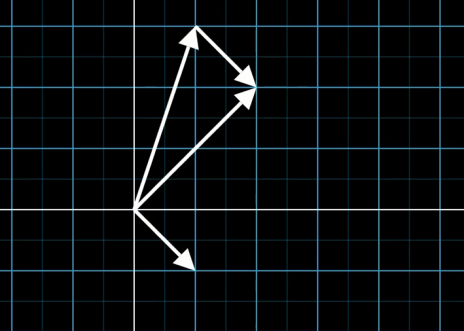

Vector Class

    def get_vector_test(self):
        plane = NumberPlane()
        a = np.array([1,3,0])
        b = np.array([2,2,0])

        vector_a = Vector(a)
        vector_b = Vector(b)

        c = Arrow(a,b, buff=0)
        vector_c = Vector(c.get_vector())

        self.add(plane)
        self.add(vector_a, vector_b, c)
        self.play(ShowCreation(vector_c))

        self.wait()

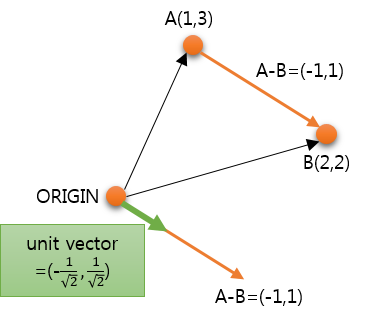

Line.get_unit_vector

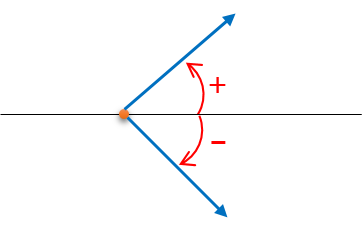

Line.get_angle

class VectorTest(MovingCameraScene):
    def construct(self):
        self.get_angle_test()

    def get_angle_test(self):
        self.setup() #MovingCameraScene's setup

        plane = NumberPlane()
        a = np.array([1, 3, 0])
        b = np.array([2, 2, 0])

        vector_a = Vector(a)
        vector_b = Vector(b)

        c = Arrow(a, b, buff=0, color=RED)
        vector_c = Vector(c.get_vector(), color=RED)

        angle = c.get_angle()
        arc = Arc(0, angle, radius=0.5)
        angle_text = DecimalNumber(angle / DEGREES).next_to(arc,RIGHT)

        #play
        self.add(plane,c)
        self.play(TransformFromCopy(c,vector_c))

        self.play(
            Succession(
                ShowCreation(arc),
                ShowCreation(angle_text),
            ),
        )
        self.play(self.camera_frame.scale, 0.7,)

        self.wait(3)

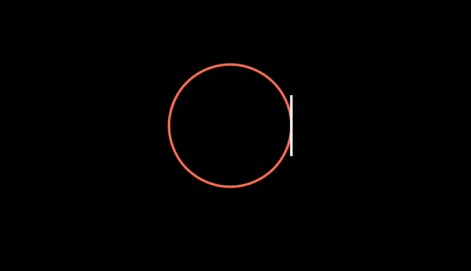

TangentLine

        circle = Circle()

        t_line = TangentLine(circle,0)

        self.add(circle)
        self.add(t_line)

        self.wait()
